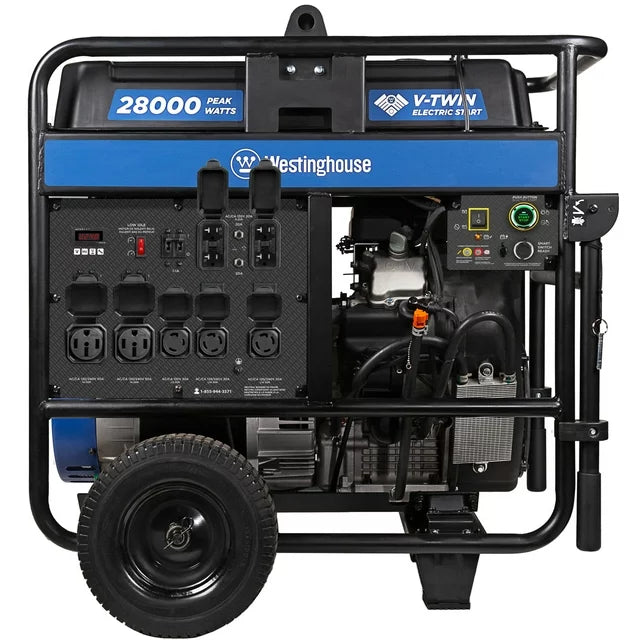

Westinghouse WGen20000 28,000 Peak-Watt and 20,000 Running-Watt Home Backup Portable Generator with Remote Electric Start

Product Description

The Westinghouse WGen20000 Portable Generator is an ultra-duty gasoline-powered generator engineered for large-home backup, demanding jobsites, workshops, farms, commercial properties, and emergency applications requiring substantial 120V and 240V power.

Delivering up to 28,000 peak watts and 20,000 running watts, the WGen20000 provides enough capacity to operate multiple major appliances, essential household circuits, pumps, heating and cooling equipment, tools, lighting, and electronic devices when properly connected through approved transfer equipment.

At the center of the generator is a heavy-duty 999cc Westinghouse V-Twin OHV engine with a cast-iron cylinder sleeve. The large-displacement engine is designed to deliver the torque and continuous output needed for demanding backup-power applications.

A substantial 17.2-gallon gasoline tank supports extended operation, while the integrated fuel gauge allows the operator to monitor remaining fuel without opening the tank. Westinghouse rates the generator for approximately 14 hours at 25% load and 8 hours at 50% load, although actual runtime varies with connected demand, engine condition, fuel quality, ambient temperature, and maintenance.

The WGen20000 includes remote and push-button electric starting, automatic choke, Smart Idle, GFCI-protected receptacles, copper alternator windings, a digital VFT data center, automatic low-oil shutdown, overload protection, reinforced handles, a wheel kit, and integrated lifting brackets.

Its 120/240V outlet panel includes multiple 30-amp and 50-amp receptacles suitable for approved transfer-switch and interlock installations. This allows the generator to serve as a powerful temporary home-backup source when installed by a qualified electrician.

28,000 Peak Watts and 20,000 Running Watts

The WGen20000 provides:

• 28,000 peak watts
• 20,000 continuous running watts
• 120V and 240V output
• Up to 233.3 peak amps at 120V
• Up to 116.7 peak amps at 240V
• Up to 166.7 running amps at 120V
• Up to 83.3 running amps at 240V

Peak wattage represents the temporary surge available when appliances and equipment with motors, compressors, or pumps first start.

Running wattage represents the continuous power available after the equipment has started and reached normal operation.

High-starting-demand equipment may include:

• Central air-conditioning systems
• Well pumps
• Sump pumps
• Refrigerators
• Freezers
• Air compressors
• Furnaces
• Workshop machinery
• Construction tools

The total continuous load must remain within the generator’s 20,000-watt running capacity. Starting demands must also be calculated so that simultaneous motor startups do not exceed the available 28,000-watt surge output.

Large-Home Backup Capability

The WGen20000 is designed for larger backup-power requirements than ordinary residential portable generators.

Depending on the electrical system and load-management plan, it may support combinations of:

• Central air-conditioning equipment
• Refrigerator and freezer
• Furnace or boiler controls
• Sump pump
• Well pump
• Lighting circuits
• Garage-door opener
• Internet and communications equipment
• Television and entertainment equipment
• Selected kitchen appliances
• Microwave
• Washing machine
• Home-office equipment
• Security systems
• Medical-support equipment within verified electrical limits

The generator should not automatically be assumed capable of powering every circuit in a home at the same time. Electric water heaters, electric ranges, clothes dryers, large HVAC systems, and high-amperage pumps can consume substantial portions of the available output.

A qualified electrician should calculate both running and starting loads before determining which household circuits can be supported.

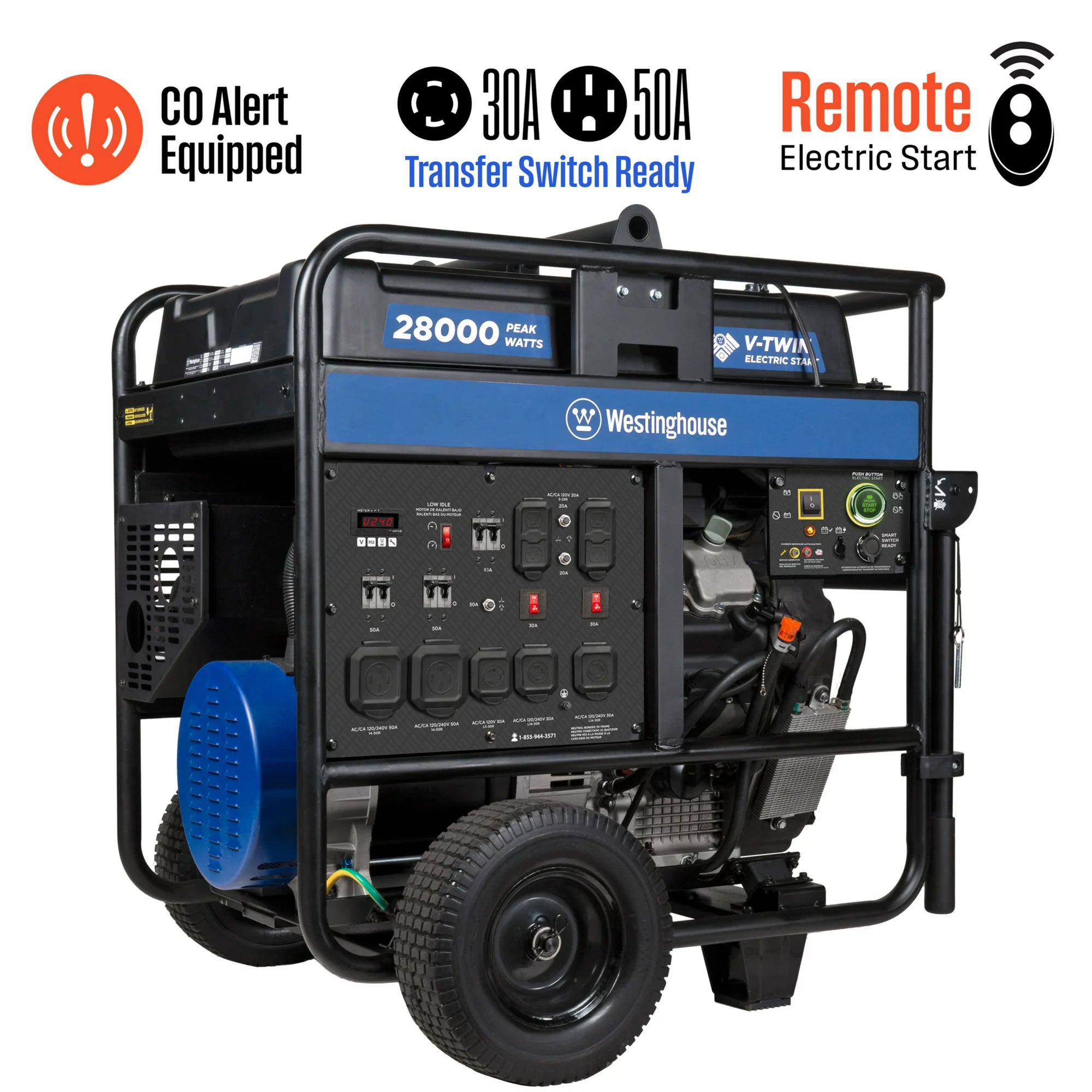

Transfer-Switch and Interlock Ready

The WGen20000 includes both 30-amp and 50-amp 120/240V receptacles for connection to compatible transfer equipment.

Its transfer-switch-ready outlet configuration includes:

• Two 120/240V L14-30R 30A receptacles
• Two 120/240V 14-50R 50A receptacles
• One 120V L5-30R 30A receptacle
• Four 120V 5-20R household outlets arranged as two duplex receptacles

The 50-amp 14-50R outlets are especially useful for connecting the generator to a properly installed home power-inlet box, manual transfer switch, or approved interlock system.

The WGen20000 must never be connected to household wiring through an improvised cord or by plugging the generator into a standard wall outlet. This dangerous practice can back-feed utility lines and expose utility workers, occupants, and equipment to serious electrical hazards.

A licensed electrician should install and inspect all permanent home-backup connections.

999cc Westinghouse V-Twin OHV Engine

The generator is powered by a 999cc Westinghouse V-Twin overhead-valve engine.

The V-Twin configuration uses two cylinders to produce the high torque required for continuous 20,000-watt output. Compared with smaller single-cylinder generator engines, the larger V-Twin design is better suited to demanding loads and extended operation.

The engine includes:

• Cast-iron cylinder sleeve
• Automatic choke
• Remote starting
• Push-button electric starting
• Smart Idle
• Automatic low-oil shutdown
• Replaceable air filter
• Serviceable spark plugs
• Large-capacity lubrication system

The cast-iron sleeve improves durability and wear resistance during extended operation.

Engine maintenance remains necessary and includes regular oil changes, air-filter inspection, spark-plug servicing, cooling-system cleaning, fuel-system maintenance, and battery care.

Remote and Push-Button Electric Start

The WGen20000 supports:

• Wireless remote start
• Push-button electric start

The included remote allows the operator to start and stop the generator from a convenient distance, provided the unit has already been positioned outdoors, fueled, inspected, connected, and placed in the correct operating mode.

Push-button electric start allows the generator to be started directly from the control panel without manually pulling a recoil cord.

The starting battery is included. Battery condition should be checked regularly, especially when the generator is stored for extended periods.

A compatible battery maintainer may be useful for emergency-backup generators that remain unused for several months.

Automatic Choke

The automatic choke system simplifies starting by automatically controlling the engine’s air-and-fuel mixture during startup.

This reduces the need for manual choke adjustment and makes both remote and push-button starting more convenient.

The choke system should still be inspected and maintained as part of routine engine service.

Smart Idle System

Smart Idle automatically lowers engine speed when electrical demand is reduced.

This can provide several benefits:

• Reduced gasoline consumption
• Lower operating noise
• Reduced unnecessary engine wear
• Improved efficiency during light-load operation

When electrical demand rises, the engine returns to the speed required to support the connected load.

Smart Idle may need to be disabled when starting equipment with a large surge requirement. The operator should follow the instructions in the generator manual and the requirements of the connected equipment.

17.2-Gallon Fuel Tank

The generator includes a large 17.2-gallon gasoline tank, equivalent to approximately 65 liters.

The tank’s capacity allows extended operation without frequent refueling, an important benefit during prolonged utility outages and demanding jobsite use.

An integrated fuel gauge helps the operator monitor fuel level.

Westinghouse’s current specification table lists approximately:

• 14 hours of runtime at 25% load
• 8 hours of runtime at 50% load

Some Westinghouse promotional text references longer figures under different operating conditions. Runtime should therefore be presented using the load-specific specification ratings rather than as a guaranteed operating duration.

Actual runtime depends on:

• Connected electrical load
• Smart Idle operation
• Fuel quality
• Engine condition
• Ambient temperature
• Altitude
• Maintenance
• Frequency of heavy startup loads

The engine must be shut down and allowed to cool before gasoline is added.

Clean Copper Alternator Windings

The WGen20000 uses copper alternator windings.

Copper provides efficient electrical conductivity and helps the alternator operate with reduced resistance and heat buildup compared with lower-grade winding materials.

Westinghouse states that the copper windings help the generator produce cleaner power, operate cooler, and provide longer service life.

Less Than 5% Total Harmonic Distortion

Westinghouse rates the generator at 5% or less total harmonic distortion.

This is relatively clean output for a large conventional portable generator and makes the WGen20000 suitable for many household electronics, including:

• Computers
• Televisions
• Phone chargers
• Networking equipment
• Home-office devices
• Entertainment systems

It is still a conventional generator rather than an inverter generator. Users of highly sensitive medical, laboratory, communications, or industrial equipment should verify the electrical requirements of those devices before connection.

VFT Digital Data Center

The control panel includes a digital VFT data center that displays:

• Output voltage
• Electrical frequency
• Lifetime running hours

Voltage monitoring helps confirm that the generator is producing the expected electrical output.

Frequency monitoring helps the operator verify stable 60 Hz operation.

The hour meter helps track maintenance intervals for:

• Engine-oil changes
• Air-filter service
• Spark-plug inspection
• Fuel-system maintenance
• General scheduled service

Maintenance should be performed based on the manual’s operating-hour intervals rather than calendar time alone.

GFCI-Protected Household Outlets

The four standard 120V household outlets are GFCI protected.

Ground-fault circuit-interrupter protection helps disconnect output if an imbalance indicates that electricity may be flowing through an unintended path.

GFCI protection is especially valuable on jobsites, outdoors, and in other locations where moisture or grounded surfaces may be present.

The outlets also include rubber covers to help protect them from dirt and debris when not in use.

Outlet covers do not make the generator weatherproof. The unit should not be operated in rain, standing water, or unsafe wet conditions.

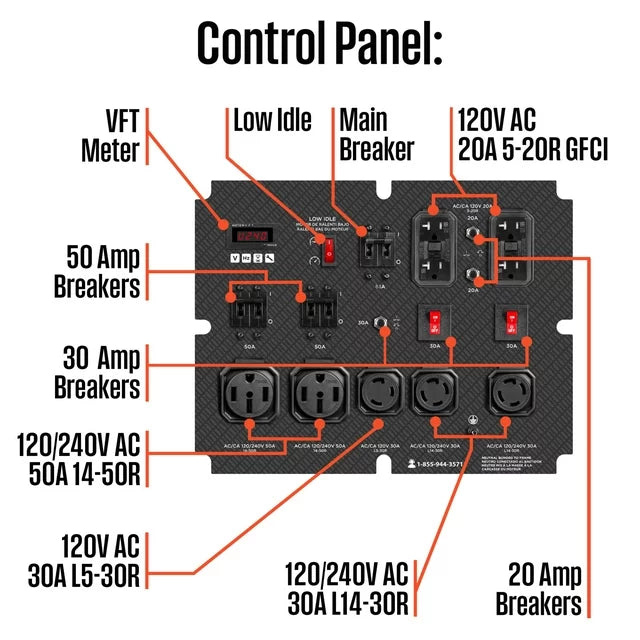

Complete Outlet Configuration

The WGen20000 includes:

• Two duplex 120V 5-20R receptacles, providing four household outlets
• One 120V L5-30R 30A twist-lock receptacle
• Two 120/240V L14-30R 30A twist-lock receptacles
• Two 120/240V 14-50R 50A receptacles

This large outlet selection allows the generator to support:

• Home transfer equipment
• High-amperage tools
• Workshop equipment
• Construction equipment
• Pumps
• Temporary power distribution
• Standard 120V appliances
• Compatible 120/240V electrical loads

All cords, adapters, transfer equipment, and distribution devices must be rated for the voltage and amperage being supplied.

Automatic Low-Oil Shutdown

The engine includes automatic low-oil shutdown.

If the oil level falls below a safe operating range, the engine shuts down to help prevent internal damage.

This feature does not replace regular oil checks.

The generator should be positioned on a firm and level surface when checking oil or operating the engine. An uneven position can affect lubrication and oil-sensor accuracy.

Westinghouse specifies:

• Oil capacity: 77.8 fluid ounces
• Approximate oil capacity: 2.3 quarts
• Recommended oil type: 10W-30

Oil grade may need to be adjusted for extreme ambient temperatures according to the owner’s manual.

Overload Protection

Integrated overload protection helps protect the generator if connected electrical demand exceeds its safe output.

If an overload occurs:

1. Disconnect or switch off the connected equipment.
2. Calculate total running wattage.
3. Identify appliances with large startup demand.
4. Reset the affected breaker.
5. Restart or reconnect loads individually.
6. Leave sufficient unused capacity for motor startup.

Repeated breaker trips indicate that the load is too high, there is a short circuit, or connected equipment has a fault.

Bonded-Neutral Grounding System

The WGen20000 uses a bonded-neutral grounding configuration.

Grounding requirements can vary depending on whether the generator is used as a separately derived system, connected through transfer equipment, or used as a portable supply.

A qualified electrician should determine whether the neutral-ground bond is appropriate for the intended installation and whether transfer equipment switches the neutral conductor.

Incorrect neutral and grounding arrangements can create shock hazards or cause GFCI and protective devices to operate improperly.

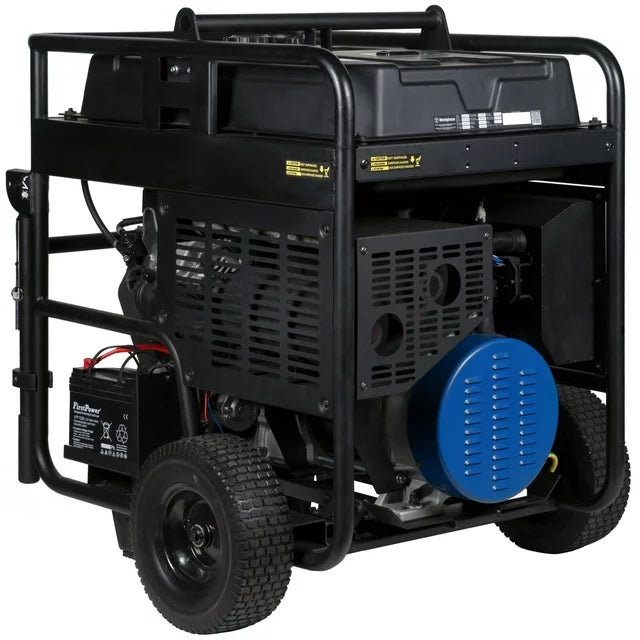

Heavy-Duty Steel Frame

The generator is built around a rugged steel frame designed to protect the engine, alternator, fuel tank, and control components.

The frame includes reinforced handles with quick-release pins, allowing the handles to be installed or removed for transport and storage.

The open-frame design provides access for cooling and service, but it also produces more operating noise than an enclosed inverter generator.

The generator must never be covered while operating.

Integrated Lift Brackets

Built-in lift brackets provide attachment points for suitable lifting equipment.

Because the generator weighs approximately 540 pounds dry, the lift brackets are important for loading, unloading, and positioning the unit at jobsites or commercial properties.

Only lifting equipment rated for the complete generator weight should be used.

The generator should never be lifted while operating, hot, leaking fuel, or connected to electrical loads.

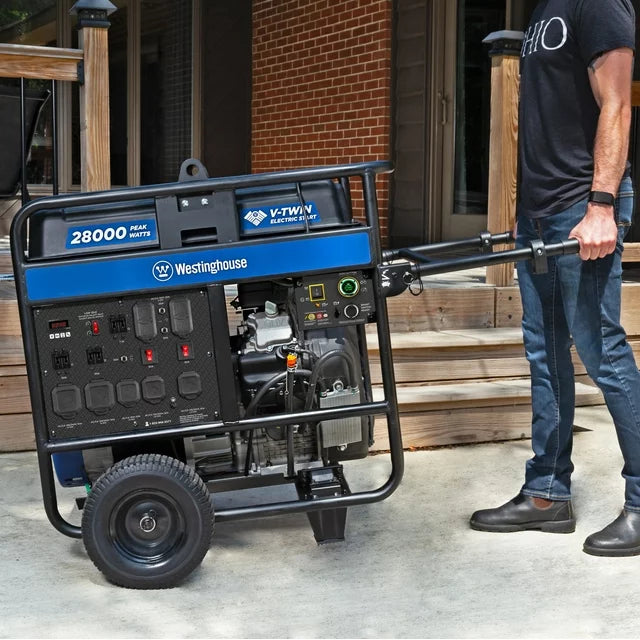

Wheel and Handle Kit

A heavy-duty wheel and handle kit is included.

The wheels and reinforced handles make it possible to reposition the generator across driveways, garages, jobsites, and other firm surfaces.

At 540 pounds without fuel, the generator remains extremely heavy. Multiple people, lifting machinery, ramps, or powered equipment may be required for safe transportation.

A full 17.2-gallon tank can add more than 100 pounds to the generator’s operating weight.

Operating Noise

Westinghouse lists the noise level at approximately 74 dBA.

Actual sound levels depend on:

• Connected load
• Smart Idle status
• Engine speed
• Distance from the generator
• Nearby buildings and walls
• Ground surface
• Measurement method

The WGen20000 is an open-frame ultra-duty generator and should not be described as a quiet or super-quiet model.

Hearing protection may be appropriate for operators working near the generator for extended periods.

Home Backup Installation

For home-backup use, a typical installation may require:

• Approved exterior power-inlet box
• Manual transfer switch or interlock kit
• Properly rated generator cord
• Correct breaker sizing
• Load-management plan
• Grounding and bonding assessment
• Permits or inspections where required

All installation work should comply with applicable electrical codes and utility requirements.

A qualified electrician should verify that the connected inlet, cord, breaker, and transfer equipment can safely handle the intended amperage.

Suitable Jobsite Applications

The WGen20000 can support demanding commercial and construction equipment, including compatible:

• Air compressors
• Concrete tools
• Welders within output limits
• Pumps
• Saws
• Lighting systems
• Temporary power panels
• Trailers
• Mobile workshops
• Multiple handheld tools

Individual tool startup and running requirements must be checked before use.

Routine Maintenance

Routine maintenance should include:

• Checking engine oil before every use
• Changing engine oil at scheduled intervals
• Inspecting and cleaning the air filter
• Replacing air-filter elements when necessary
• Inspecting and replacing spark plugs
• Maintaining the electric-start battery
• Checking fuel lines and fittings
• Inspecting the fuel tank and cap
• Cleaning engine cooling areas
• Inspecting electrical outlets and breakers
• Testing the GFCI outlets
• Checking wheel and handle hardware
• Inspecting lift brackets
• Monitoring voltage, frequency, and running hours
• Stabilizing or draining gasoline before long-term storage

Only fresh gasoline meeting Westinghouse fuel requirements should be used.

The generator should be allowed to cool before refueling, transportation, cleaning, or storage.

Technical Specifications

Westinghouse’s official specification table confirms the model number, output ratings, engine, runtime, fuel capacity, outlets, noise level, weight, dimensions, compliance status, and warranty coverage.

What’s Included

• Westinghouse WGen20000 portable generator
• 999cc Westinghouse V-Twin OHV engine
• 17.2-gallon gasoline fuel tank
• Electric-start battery
• Wireless remote-start key fob
• Heavy-duty wheel kit
• Reinforced steel handles
• Quick-release handle pins
• Integrated lift brackets
• Oil bottle
• Oil funnel
• Spark-plug wrench
• Quick-start guide
• Owner’s manual
• Warranty documentation

Generator cord, transfer switch, interlock kit, home power-inlet box, fuel, and permanent electrical-installation components are normally sold separately.

Accessories Sold Separately

• 50-amp generator power cord
• 30-amp generator power cord
• Exterior power-inlet box
• Manual transfer switch
• Approved generator interlock kit
• Temporary power-distribution equipment
• Heavy-duty outdoor extension cords
• Generator weather cover
• Battery maintainer
• Replacement starting battery
• Fuel stabilizer
• Replacement air filter
• Replacement spark plugs
• Engine oil
• Oil-drain accessories
• Surge-protection equipment
• Hearing protection
• Approved outdoor operating shelter designed for portable generators

Accessory ratings must match the generator’s voltage, amperage, receptacle type, and intended application.

Ideal Applications

• Large-home emergency backup
• Central air-conditioning support within calculated limits
• Refrigerator and freezer backup
• Well-pump operation
• Sump-pump operation
• Furnace and boiler support
• Essential household circuits
• Commercial facilities
• Construction jobsites
• Farms and ranches
• Workshops
• Temporary power distribution
• High-demand power tools
• Mobile service operations
• Emergency-response power
• Property-maintenance operations
• Users requiring 30A and 50A 120/240V connections
• Applications needing up to 20,000 continuous watts
• Users requiring remote electric starting
• Locations requiring long gasoline runtime

Important Safety Information

This generator must only be operated outdoors, far away from occupied buildings, doors, windows, vents, garages, basements, and other enclosed or partially enclosed areas.

The WGen20000 specification lists no integrated carbon-monoxide sensor, making correct outdoor placement and working carbon-monoxide alarms inside occupied buildings especially important.

Never operate the generator:

• Inside a home
• Inside a garage
• Inside a shed
• In a basement
• Under an enclosed porch
• Inside a trailer
• Near open doors or windows
• In any location where exhaust could enter an occupied building

The generator must never be connected directly to a home through a standard wall outlet. A transfer switch or approved interlock system must be professionally installed to prevent dangerous electrical back-feed.
