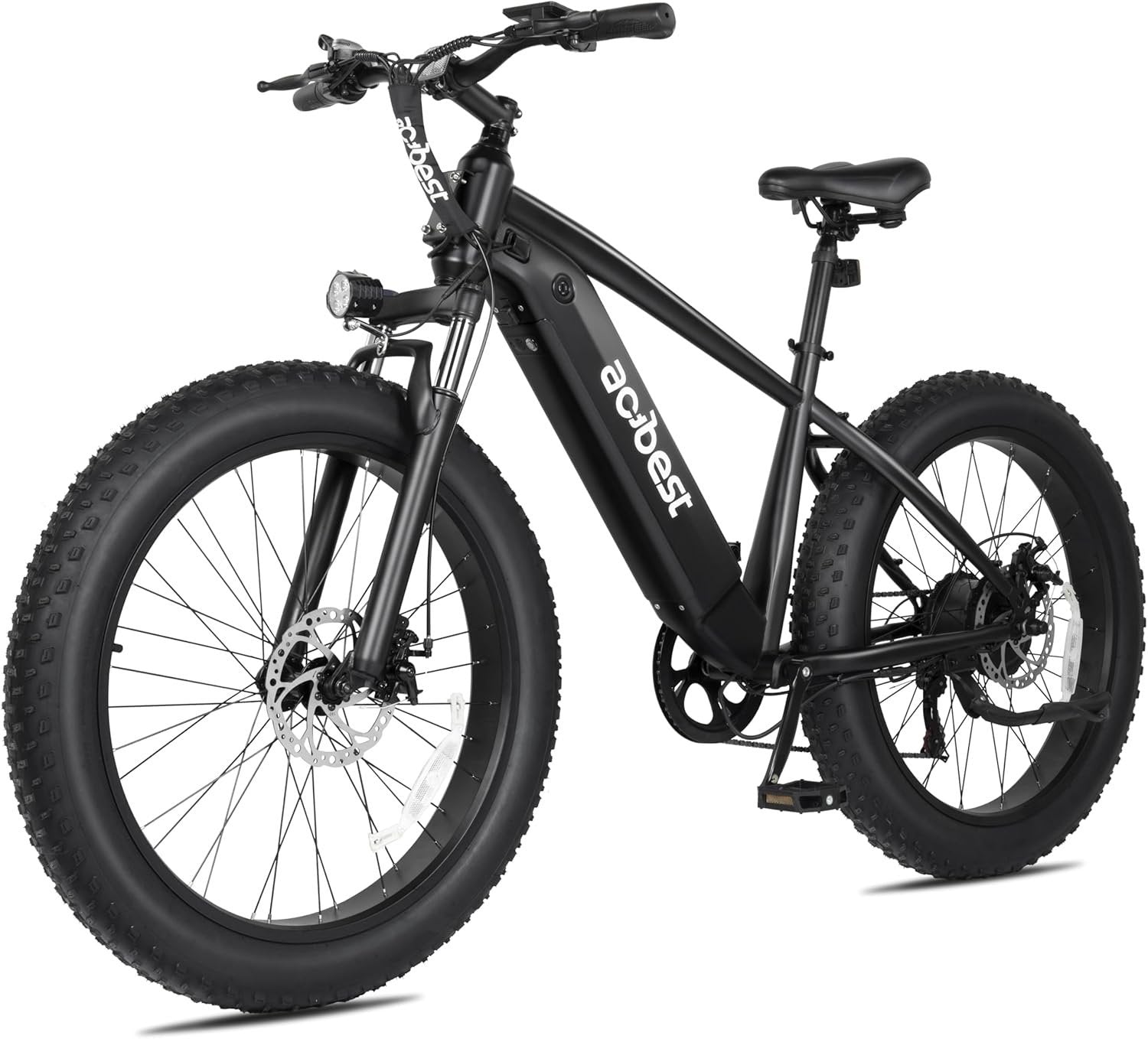

Actbest Ranger 1400W All-Terrain Fat-Tire Electric Mountain Bike

Take on daily commutes, off-road trails, steep inclines, and weekend adventures with the Actbest Ranger All-Terrain Electric Mountain Bike. Designed for riders who need dependable power and versatile handling, the Ranger combines a 1400W peak motor, high-capacity removable battery, wide fat tires, front suspension, and a seven-speed drivetrain in a durable step-over frame.

The powerful rear-hub motor delivers responsive acceleration and up to 85Nm of torque, helping the bike maintain consistent performance on hills and challenging surfaces. Its integrated 48V 13Ah battery provides an advertised riding range of up to 65 miles under suitable pedal-assist conditions, while the wide 26 × 4-inch tires offer traction and stability across pavement, gravel, grass, sand, snow, and compact dirt.

Whether used for everyday transportation or recreational exploration, the Ranger provides a practical combination of electric assistance, traditional bicycle gearing, rider comfort, and all-terrain capability.

Powerful 1400W Peak Motor

The Actbest Ranger is powered by a rear-mounted brushless motor capable of producing up to 1400W of peak output.

The high-output motor provides strong assistance when starting from a stop, accelerating through traffic, climbing hills, or travelling across uneven terrain. With up to 85Nm of torque, it delivers controlled low-speed power and dependable support for heavier loads.

The manufacturer lists a maximum speed of up to 28 mph. Actual speed will depend on rider weight, battery charge, riding mode, terrain, incline, weather conditions, and applicable local regulations.

48V 13Ah Removable Battery

A built-in 48V 13Ah lithium-ion battery supplies approximately 624Wh of energy capacity.

The battery is integrated into the frame for a cleaner appearance and improved protection during everyday riding. It can also be removed using the supplied keys, allowing it to be charged separately from the bike.

This removable design is useful for riders who store the bike in a garage, apartment, office, or shared bicycle area without convenient access to an electrical outlet.

The battery should only be charged using the supplied compatible charger and stored in a clean, dry, temperature-controlled location.

Up to 65 Miles of Riding Range

The Ranger provides a manufacturer-advertised maximum range of up to 65 miles per charge under favorable pedal-assist conditions.

Pedal assistance generally delivers a longer range than continuous throttle operation because the rider contributes part of the energy required to move the bicycle.

Actual range can vary according to:

• Rider and cargo weight
• Pedal-assist level
• Throttle usage
• Average riding speed
• Terrain and incline
• Tire pressure
• Wind and outdoor temperature
• Battery age and condition
• Frequency of stops and acceleration

Higher assistance settings, steep hills, soft terrain, and continuous throttle use will typically reduce the available range.

Up to 28 MPH Maximum Speed

The high-output motor supports a manufacturer-rated maximum speed of up to 28 mph.

Multiple electric-assistance settings allow riders to adjust motor support according to their preferred speed, remaining battery capacity, and route conditions. Lower settings are suitable for relaxed commuting and improved efficiency, while higher settings provide stronger acceleration and climbing assistance.

Electric-bike classifications and speed limits vary by state, city, and riding location. The bike should always be configured and operated according to local laws.

26 × 4-Inch All-Terrain Fat Tires

Wide 26 × 4-inch tires provide a broad contact area for increased stability and traction.

Their large diameter helps the bike roll over uneven surfaces, while the four-inch width improves grip on loose or soft terrain. The tires are suitable for paved roads, gravel, compact dirt, grass, sand, light snow, and other appropriate riding environments.

The fat-tire design also helps absorb smaller bumps and surface vibration, creating a more comfortable ride than narrower conventional bicycle tires.

Tire pressure should be checked regularly because underinflated tires can reduce range, increase rolling resistance, and negatively affect handling.

Front Suspension Fork

The front suspension fork helps absorb shocks from potholes, roots, gravel, cracked pavement, and uneven trails.

This suspension system reduces the amount of vibration transferred through the handlebars and helps the front wheel remain more controlled when travelling over rough surfaces.

For safer performance, the suspension fork and mounting hardware should be inspected periodically for looseness, damage, or unusual movement.

Shimano Seven-Speed Drivetrain

A Shimano seven-speed mechanical drivetrain allows riders to select a suitable gear for different terrain and riding conditions.

Lower gears make pedaling easier when starting or climbing hills, while higher gears provide more comfortable pedaling at faster speeds. The mechanical drivetrain also allows the Ranger to be ridden as a conventional bicycle when electric assistance is switched off.

Combining seven mechanical gears with adjustable electric assistance gives the rider more control over speed, pedaling effort, and battery consumption.

Multiple Riding Modes

The Ranger supports several ways to ride depending on the rider’s preference and remaining battery capacity.

Pedal Mode

The bike operates like a traditional bicycle without electric motor assistance.

Pedal-Assist Mode

The motor provides support while the rider pedals. This mode normally offers the best balance between effort, performance, and battery range.

Throttle Mode

The motor can provide power through throttle input without continuous pedaling, where permitted by local regulations.

Assisted Cruising

Higher assistance settings can be used for stronger acceleration, hill climbing, or riding across demanding terrain.

Front and Rear Disc Brakes

The Actbest Ranger uses front and rear disc brakes to provide controlled stopping performance.

Disc brakes provide dependable braking across varied riding conditions and allow braking force to be distributed between both wheels. This helps improve control during routine commuting and off-road riding.

Brake pads, cables, rotors, and mounting bolts should be inspected regularly. Braking performance can be affected by rain, mud, contamination, worn pads, or improperly adjusted components.

High-Visibility LCD Display

A handlebar-mounted LCD display provides important riding information in an accessible position.

Depending on the selected setting, the screen can display:

• Current speed
• Battery charge level
• Pedal-assist level
• Trip distance
• Total travel distance
• Motor status
• Riding information

The display controls allow the rider to adjust assistance settings without leaving the normal riding position.

Integrated Lighting System

The Ranger includes front lighting to improve visibility during early-morning, evening, and low-light rides.

The headlight helps illuminate the road ahead and makes the bike easier for other road users to notice. Front and rear reflectors are also included to increase passive visibility.

Additional rear lighting and reflective clothing may be required depending on local laws and riding conditions.

Durable Step-Over Frame

The bike uses a strong step-over frame engineered for everyday transportation and all-terrain riding.

The high top tube contributes to frame rigidity, helping the bicycle remain stable during acceleration and uneven-surface travel. The manufacturer recommends the Ranger for riders approximately 5 feet 7 inches to 6 feet 5 inches tall.

The total maximum payload is listed at up to 360 lbs. This rating includes the rider and any cargo or accessories carried on the bicycle.

Comfortable Adjustable Riding Position

An adjustable saddle allows riders to modify the seat height according to their leg length and preferred riding posture.

The minimum listed seat height is approximately 28.3 inches, while the maximum is approximately 33.9 inches. Wide handlebars provide leverage and steering control across open roads and rougher terrain.

Riders should ensure the seat post remains within its safe insertion markings and that all adjustment clamps are securely tightened before riding.

UL-Tested Electrical System

Retail listings for the Ranger state that its battery pack and complete electrical system have been independently tested to applicable UL 2271 and UL 2849 standards.

These standards address battery and electrical-system safety for electric bicycles. Certification does not replace proper charging, inspection, storage, or maintenance practices.

Always use the approved charger, avoid damaged electrical components, and never charge the battery near combustible materials.

Key Features

• 1400W peak brushless rear-hub motor
• Up to 85Nm of motor torque
• Manufacturer-rated speed of up to 28 mph
• 48V 13Ah removable lithium-ion battery
• Approximately 624Wh battery capacity
• Up to 65 miles of advertised pedal-assisted range
• 26 × 4-inch all-terrain fat tires
• Front suspension fork
• Shimano seven-speed drivetrain
• Front and rear disc brakes
• Pedal, pedal-assist, and throttle operation
• Handlebar-mounted LCD display
• Integrated front headlight
• Front and rear reflectors
• Durable step-over frame
• Maximum payload capacity of up to 360 lbs
• Recommended rider height of approximately 5 ft 7 in to 6 ft 5 in
• Suitable for commuting, trails, gravel, sand, snow, and mixed terrain

Technical Specifications

What’s Included

• 1 × Actbest Ranger Electric Mountain Bike
• 1 × 48V 13Ah Removable Battery
• 1 × Compatible Battery Charger
• 1 × User Manual
• 2 × Pedals
• 2 × Battery Keys
• 4 × Open-End Wrenches
• 4 × Assembly Tools
• 1 × Phillips-Head Tool
• 1 × Front Reflector
• 1 × Rear Reflector
• Standard installation hardware

Package contents may vary slightly depending on the seller, production batch, or selected configuration.

Assembly Information

The bike is delivered partially assembled. Typical setup may include installing or adjusting the front wheel, handlebars, pedals, saddle, front light, and reflectors.

Before the first ride, verify that:

• Both wheels are properly secured
• The handlebars and stem are correctly aligned
• The pedals are fitted to their correct sides
• The brakes operate evenly and effectively
• The tires are properly inflated
• The battery is securely locked into the frame
• The chain and derailleur move smoothly
• All visible bolts and fasteners are tightened

Professional bicycle assembly is recommended for riders who are not familiar with electric-bike setup.

Maintenance Guidance

Regular maintenance helps preserve performance, safety, and battery life.

Check tire pressure, brake operation, wheel alignment, chain lubrication, suspension condition, battery connections, and frame fasteners before riding. Clean the bike using a soft damp cloth and avoid spraying electrical components directly with high-pressure water.

Remove the battery before performing repairs or extended storage. Store the battery partially charged in a cool, dry location and recharge it periodically according to the manufacturer’s instructions.

Important Performance Notice

Maximum speed, torque, climbing performance, and range are manufacturer-rated figures achieved under specific testing conditions.

Actual performance will vary according to rider weight, cargo, terrain, incline, assistance level, throttle use, wind, temperature, tire pressure, battery condition, and riding behavior.

Always wear a properly fitted helmet and suitable protective equipment. Follow all applicable electric-bike classifications, speed restrictions, age requirements, helmet laws, and trail regulations.
