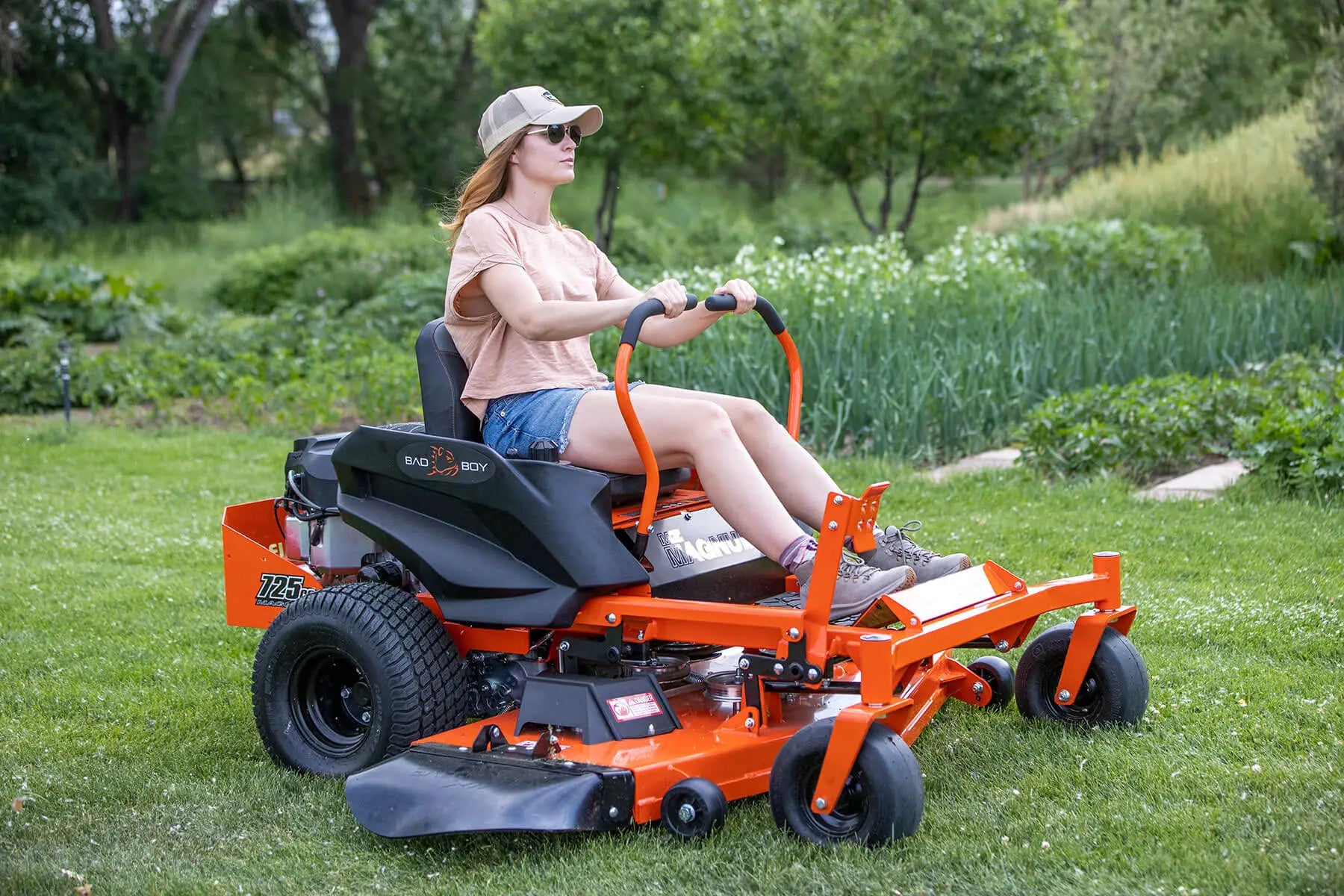

Bad Boy MZ Magnum 54-Inch 24 HP Kohler 7000 Series Gas Zero-Turn Riding Lawn Mower
Bad Boy MZ Magnum 54-Inch 24 HP Kohler 7000 Series Gas Zero-Turn Riding Lawn Mower
Product Description

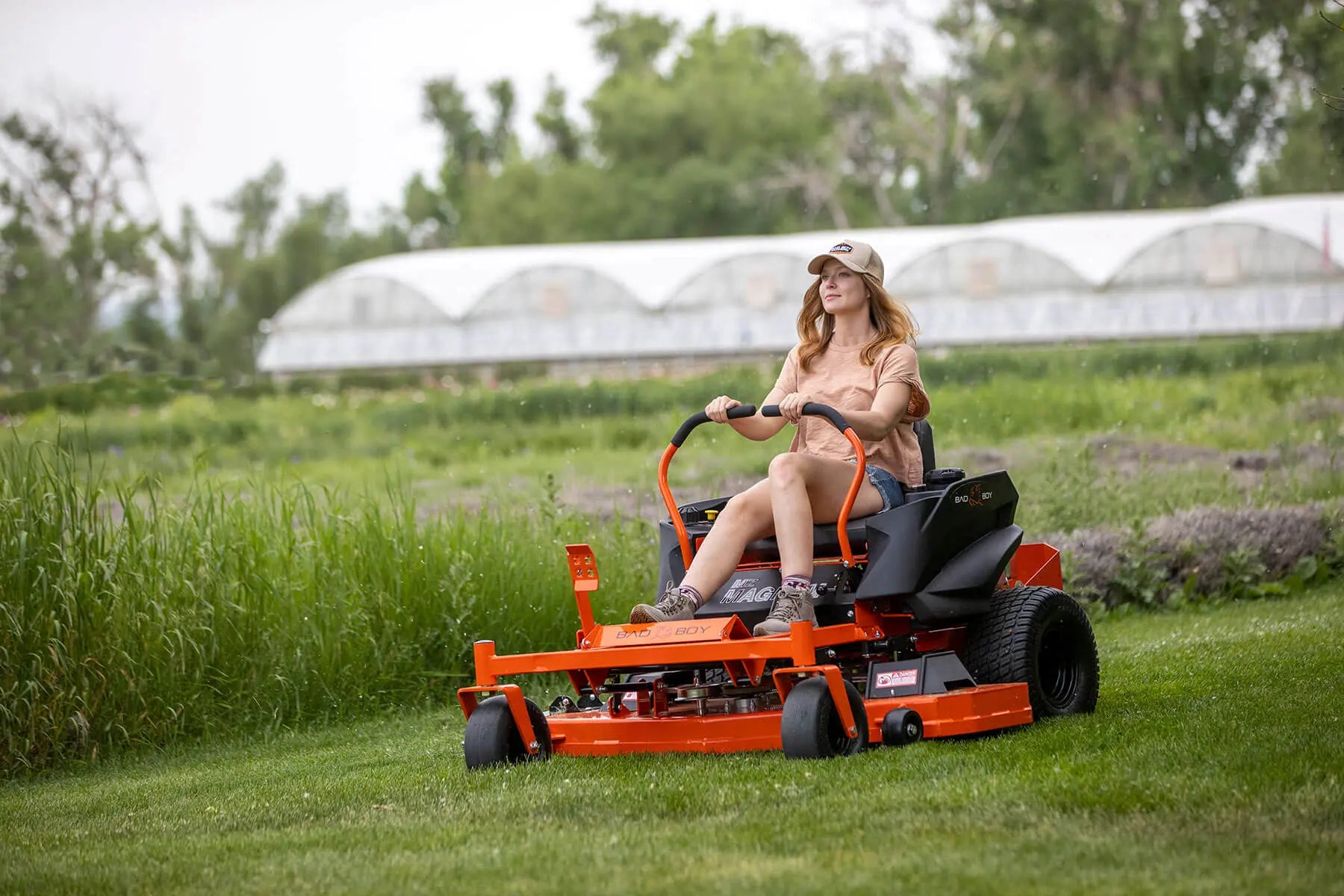

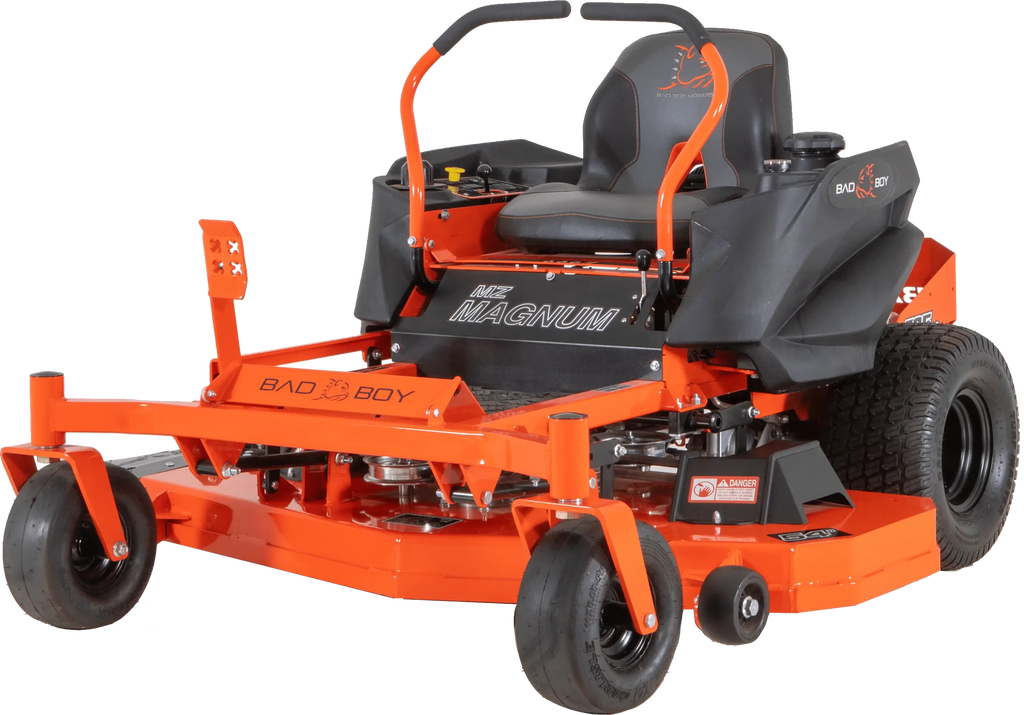

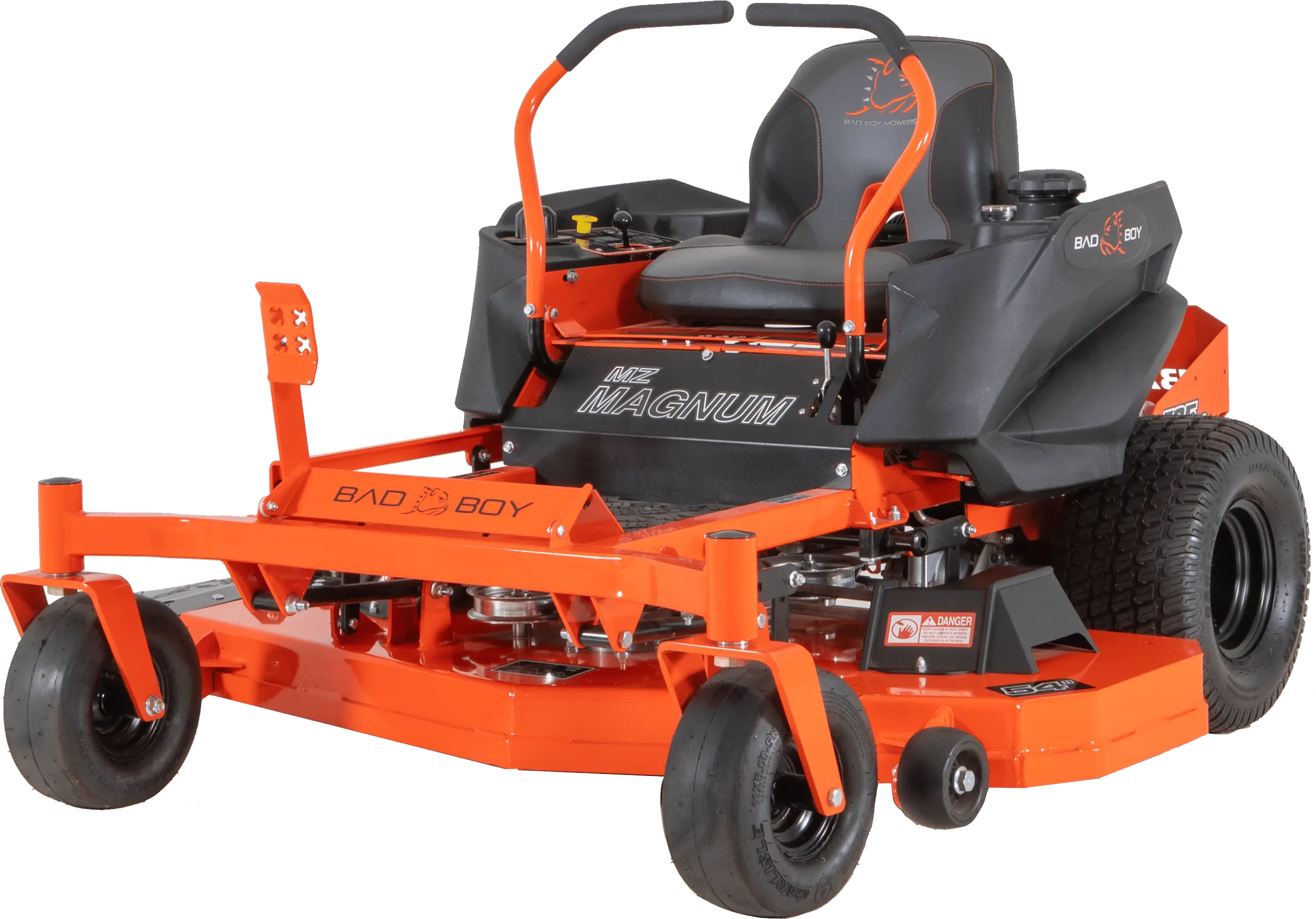

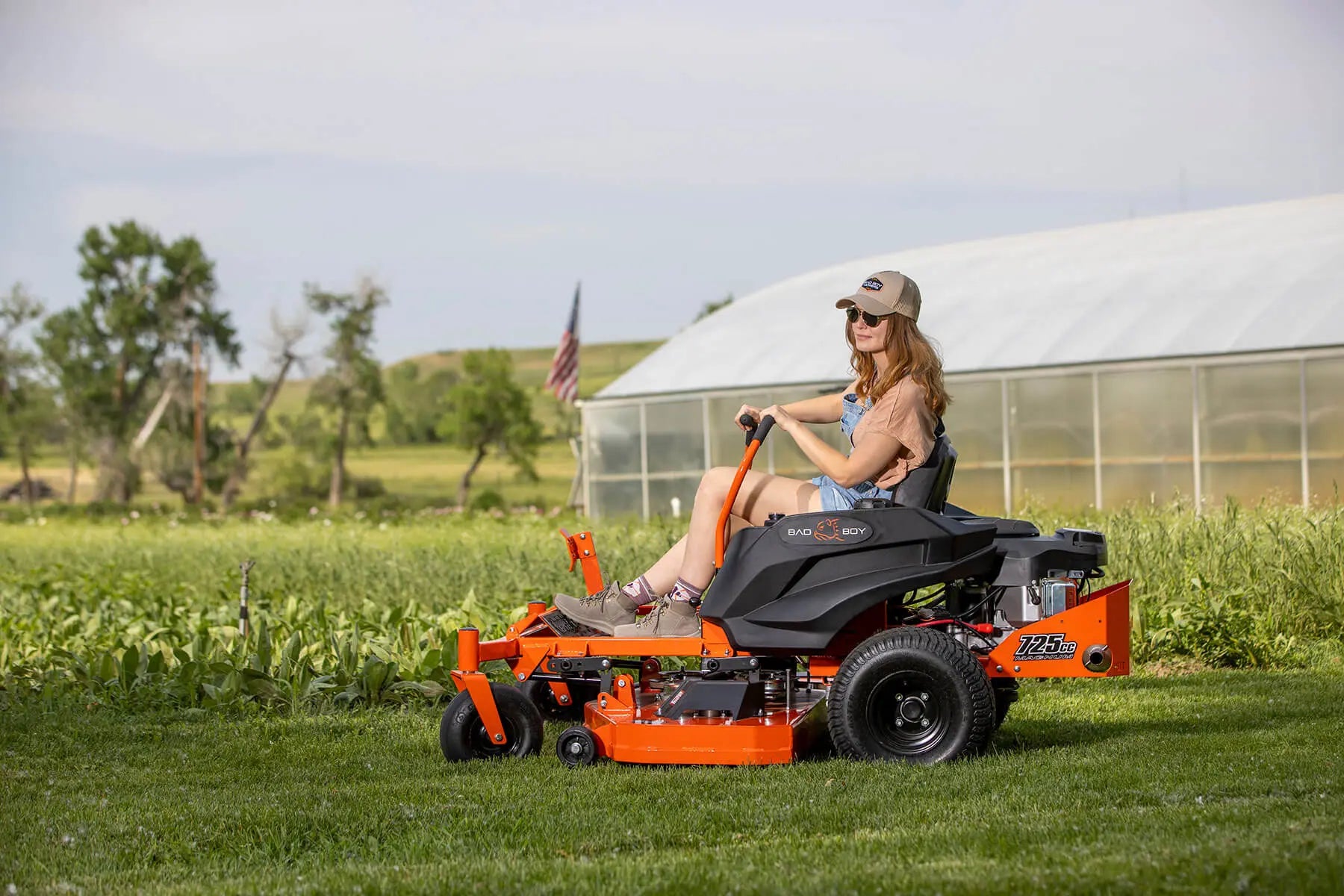

The Bad Boy MZ Magnum 54-Inch Zero-Turn Riding Lawn Mower combines commercial-inspired steel construction with the maneuverability and convenience required for demanding residential lawn maintenance. Powered by a 24 HP, 747cc Kohler 7000 Series V-twin engine, it delivers dependable torque and smooth power for maintaining large lawns, open grass areas and properties containing landscaping obstacles.
Its wide 54-inch fabricated cutting deck helps cover more ground with every pass. Unlike lightweight stamped decks commonly found on residential riding mowers, the MZ Magnum uses an all-steel, formed and welded deck constructed from heavy 3/16-inch or 7-gauge steel. Reinforced edges and additional side protection help the deck withstand regular mowing around uneven terrain and demanding lawn conditions.
The mower is driven by dual Hydro-Gear EZT-2200 integrated hydrostatic drive systems. Independent steering levers control the rear wheels, allowing the machine to turn within its own footprint and move accurately around trees, beds, pathways and other obstacles. Forward speeds of up to approximately 6 mph help reduce mowing time across open areas.
A foot-assisted deck-lift system makes cutting-height changes easier. The operator can raise the deck using the pedal and select a cutting height between 1.5 and 4.5 inches using the dial-style adjustment control. This provides the flexibility needed for different grass varieties, seasonal growth and preferred lawn finishes.
Operator comfort is supported by an adjustable cushioned seat, steering dampening and a spacious platform with a no-slip rubber floor mat. The seat can be adjusted forward or backward, while the dampened steering system provides smoother control and response during longer mowing sessions.
The flip-up floorboard and lift-up seat improve access to serviceable components, making routine inspection, cleaning and maintenance more convenient. A six-gallon fuel capacity supports extended mowing sessions with fewer refueling stops.
Key Features
- 24 HP Kohler 7000 Series V-twin gasoline engine
- 747cc air-cooled engine displacement
- Wide 54-inch fabricated steel cutting deck
- Heavy 3/16-inch or 7-gauge deck construction
- Formed and welded deck with reinforced edges
- Dual Hydro-Gear EZT-2200 hydrostatic drives
- True zero-turn steering and maneuverability
- Forward ground speed of up to 6 mph
- Adjustable cutting range from 1.5 to 4.5 inches
- Foot-assisted manual deck lift
- Dial-style cutting-height adjustment
- Electric PTO blade engagement
- Heavy-gauge, all-steel welded frame
- 2 × 2-inch steel frame rails
- Heavy-duty 3/8-inch steel front forks
- Maintenance-free deck spindles
- Adjustable cushioned operator seat
- Steering dampening for smoother control
- Flip-up floorboard for maintenance access
- Lift-up seat for convenient cleaning
- Six-gallon fuel tank
- Suitable for demanding residential mowing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bad Boy Mowers |
| Product Series | MZ Magnum |
| Product Type | Gas Zero-Turn Riding Lawn Mower |
| Engine Brand | Kohler |
| Engine Series | Kohler 7000 |
| Engine Model | KT724 |
| Engine Power | 24 HP |
| Engine Displacement | 747cc |
| Engine Configuration | V-Twin |
| Cooling System | Air Cooled |
| Fuel Type | Unleaded Gasoline |
| Fuel Capacity | 6 gallons |
| Cutting Width | 54 inches |
| Deck Type | Fabricated, Formed and Welded |
| Deck Material | All Steel |
| Deck Thickness | 3/16 inch or 7 Gauge |
| Deck Reinforcement | Reinforced Edges and Side Plates |
| Transmission | Dual Hydro-Gear EZT-2200 |
| Drive Type | Dual Hydrostatic |
| Maximum Forward Speed | Up to 6 mph |
| Cutting-Height Range | 1.5–4.5 inches |
| Deck-Lift System | Foot-Assist Manual Lift |
| Height Adjustment | Dial-Style Control |
| Blade Engagement | Electric PTO |
| Rear Tire Size | 18 × 9.5–8 inches |
| Front Tire Size | 11 × 6.00–5 inches |
| Overall Length | 76 inches |
| Width with Chute Raised | 58 inches |
| Width with Chute Lowered | 67 inches |
| Overall Height | 42 inches |
| Approximate Weight | 687 lb |
| Frame Construction | Heavy-Gauge Welded Steel |
| Front Fork Thickness | 3/8 inch |
| Seat | Adjustable Cushioned Seat |
| Recommended Application | Large Residential Lawns |

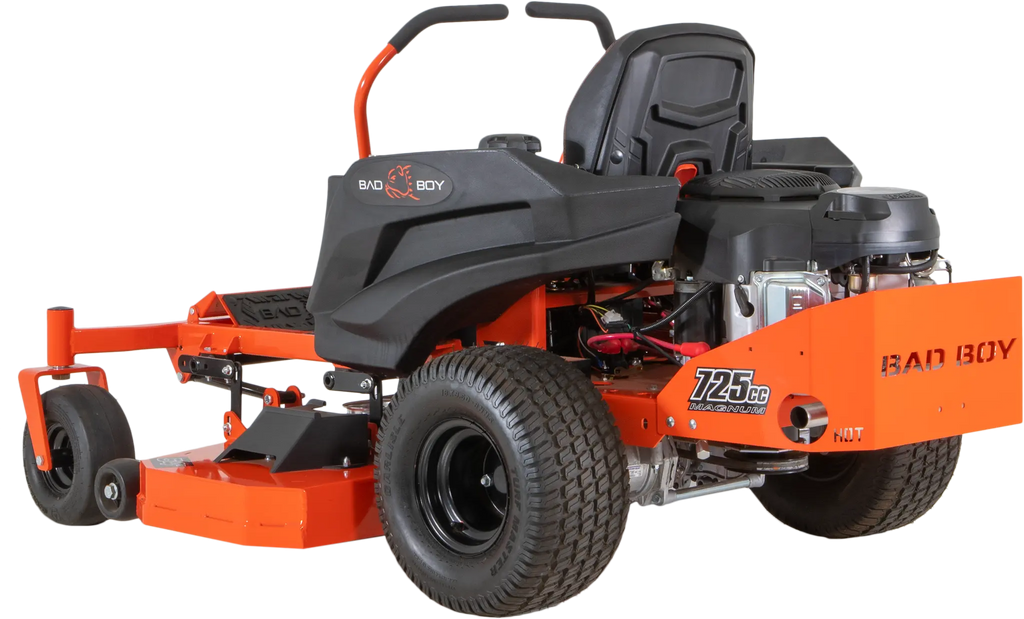

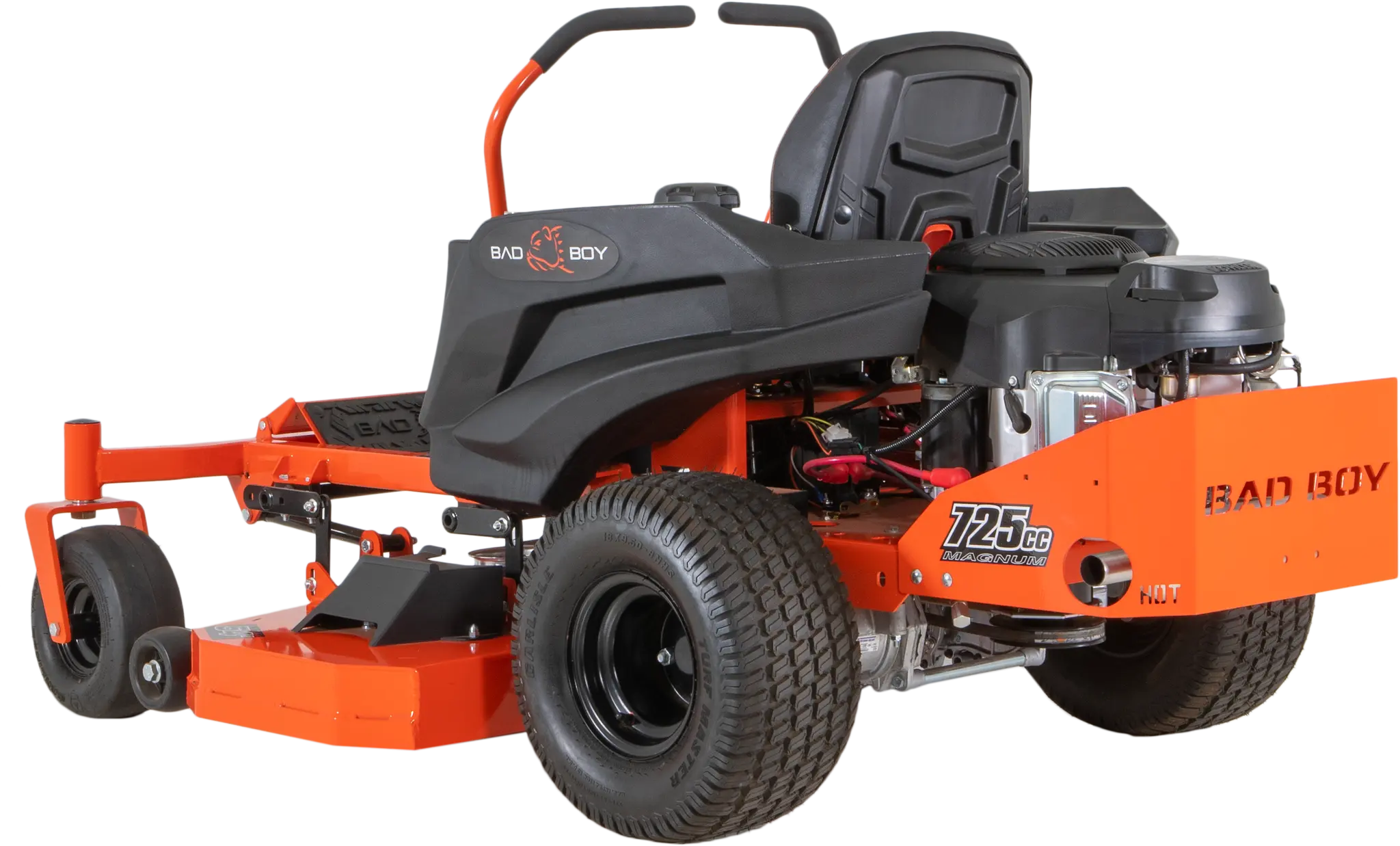

24 HP Kohler 7000 Series Engine
The Kohler 7000 Series KT724 engine features a 747cc V-twin layout that delivers smooth and responsive power. Its two-cylinder configuration helps reduce vibration while providing the torque needed to operate the wide 54-inch cutting deck across regularly maintained residential lawns.
The air-cooled gasoline engine is paired with electric starting and a six-gallon fuel tank, making the mower suitable for extended lawn-maintenance sessions.

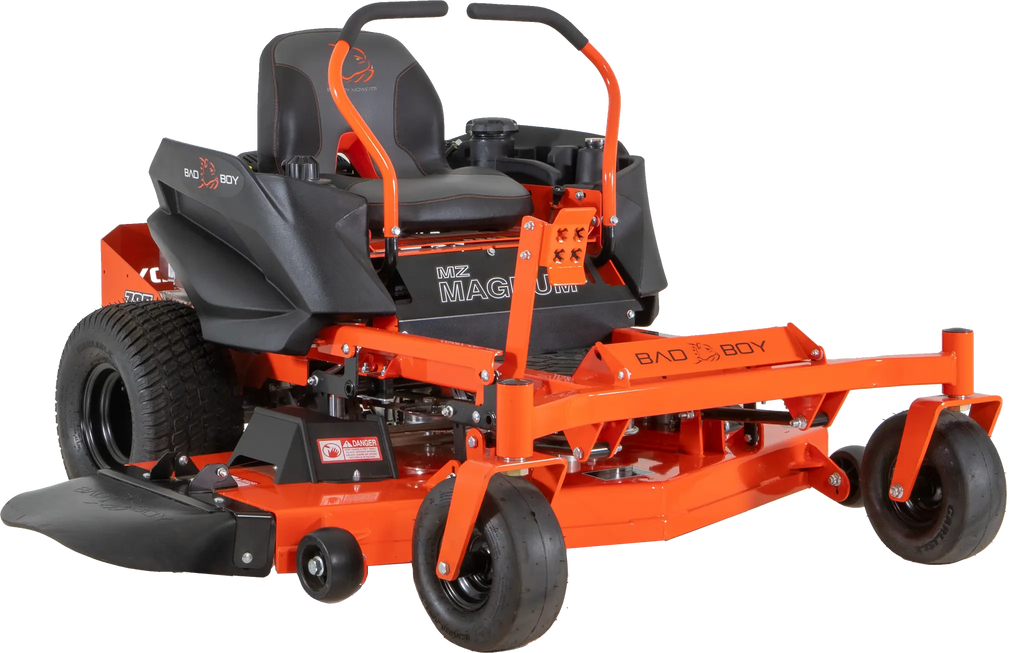

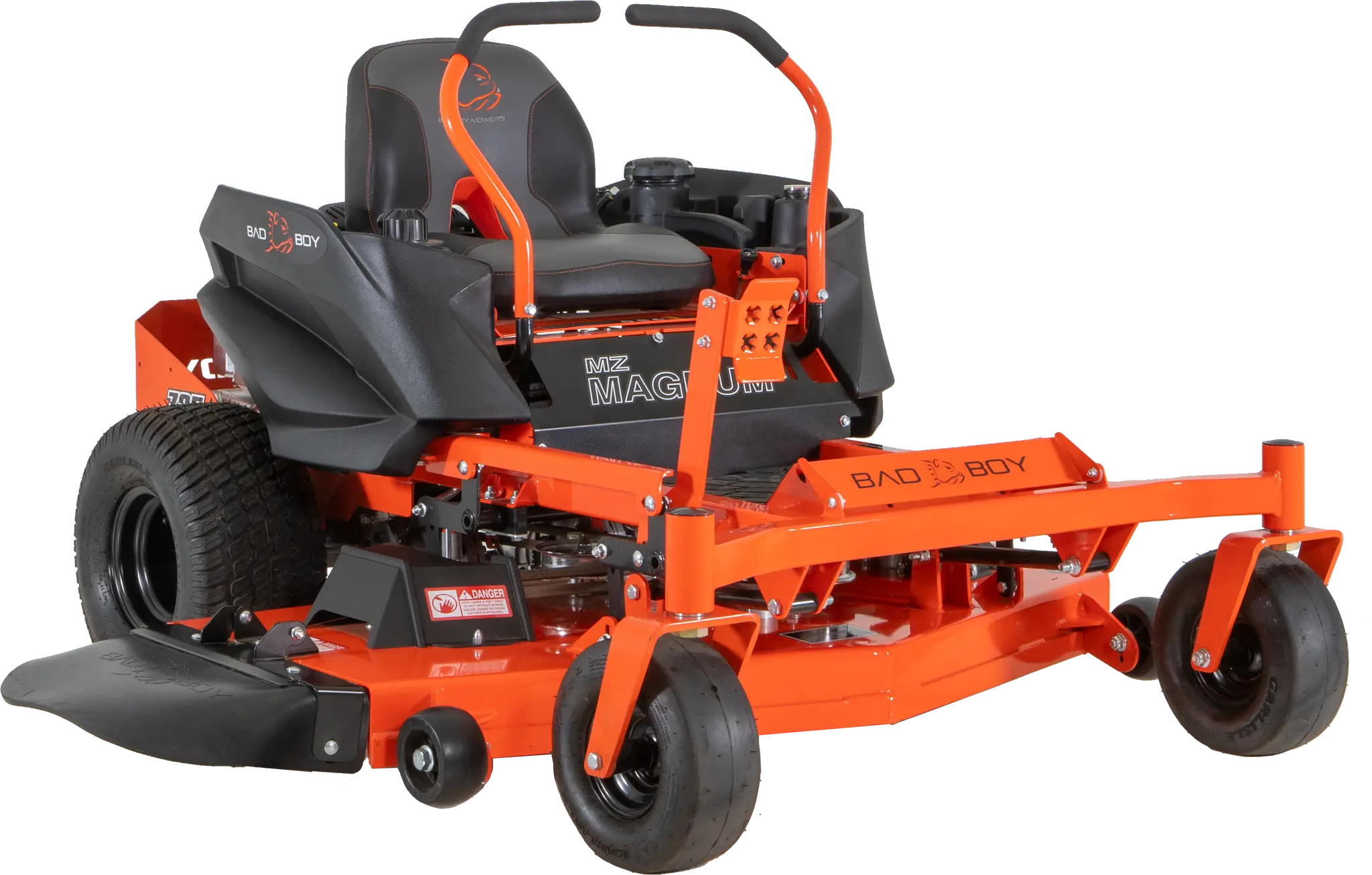

Heavy-Duty 54-Inch Fabricated Deck
The MZ Magnum’s 54-inch deck is constructed from formed and welded steel rather than a single stamped sheet. Its heavy 3/16-inch or 7-gauge construction provides greater resistance to impacts, vibration and long-term wear.
Reinforced edges strengthen the deck perimeter, while the internal baffling system is designed to improve airflow, grass lift and clipping discharge. The broad cutting width helps reduce the number of passes required on larger properties.
Dual Hydrostatic Drive System
Two Hydro-Gear EZT-2200 integrated drive units provide independent control of the rear wheels. Moving both steering levers forward drives the mower straight, while changing the position of either lever allows the mower to turn, reverse or pivot around obstacles.
The zero-turn design provides greater maneuverability than a conventional lawn tractor, particularly around:
- Trees
- Flower beds
- Fences
- Landscape borders
- Pathways
- Buildings and outdoor structures
Adjustable Cutting System
The foot-assist deck lift reduces the effort required to raise the heavy fabricated deck. Once raised, the cutting height can be selected using the conveniently positioned dial.
Available settings range from approximately 1.5 to 4.5 inches, allowing the operator to adapt the cut for weather conditions, grass growth and the desired lawn appearance.
Operator Comfort and Control
The adjustable cushioned seat can be moved forward or backward to accommodate different operators. Steering dampeners help provide smoother lever response, reducing abrupt movement and improving control.
A textured no-slip floor mat provides a secure foot position, while the spacious operator platform supports easier entry and exit.
Maintenance-Friendly Construction
The seat lifts to provide access to components beneath the operator area. The floorboard also flips upward, making it easier to inspect, clean and service the deck and related components.
Maintenance-free spindles help reduce routine lubrication requirements, although all scheduled engine, belt, blade and general mower maintenance should still be completed according to the operator’s manual.
Product Dimensions
| Measurement | Size |
| Cutting Width | 54 inches |
| Overall Length | 76 inches |
| Width with Discharge Chute Up | 58 inches |
| Width with Discharge Chute Down | 67 inches |
| Overall Height | 42 inches |
| Approximate Weight | 687 lb |
Recommended Applications
The Bad Boy MZ Magnum 54 is suitable for:
- Large residential lawns
- Wide and open grass areas
- Properties with numerous landscaping obstacles
- Homeowners upgrading from a lawn tractor
- Frequent seasonal mowing
- Users requiring a heavy fabricated deck
- Residential properties where efficient turning is important
What’s Included
- Bad Boy MZ Magnum zero-turn mower
- 24 HP Kohler 7000 Series engine
- 54-inch fabricated steel cutting deck
- Dual Hydro-Gear EZT-2200 drive systems
- Adjustable cushioned operator seat
- Electric PTO blade-engagement system
- Six-gallon fuel tank
- Starter battery
- Ignition key
- Side-discharge assembly
- Operator’s manual
- Standard manufacturer-supplied hardware
